TSLC-2000
MDR Class I - Visual Acuity Chart System for Modern Ophthalmic Clinics
Designed for modern ophthalmic clinics, TSLC-2000 combines advanced visual acuity testing, compact installation, Android-based operation, and seamless integration with digital refraction systems.
Send Inquiry Download Brochure
Designed for Modern Vision Examination
From standard visual acuity testing to binocular vision, astigmatism, low vision, and special chart examinations, TSLC-2000 provides versatile chart functions in a compact LCD platform.

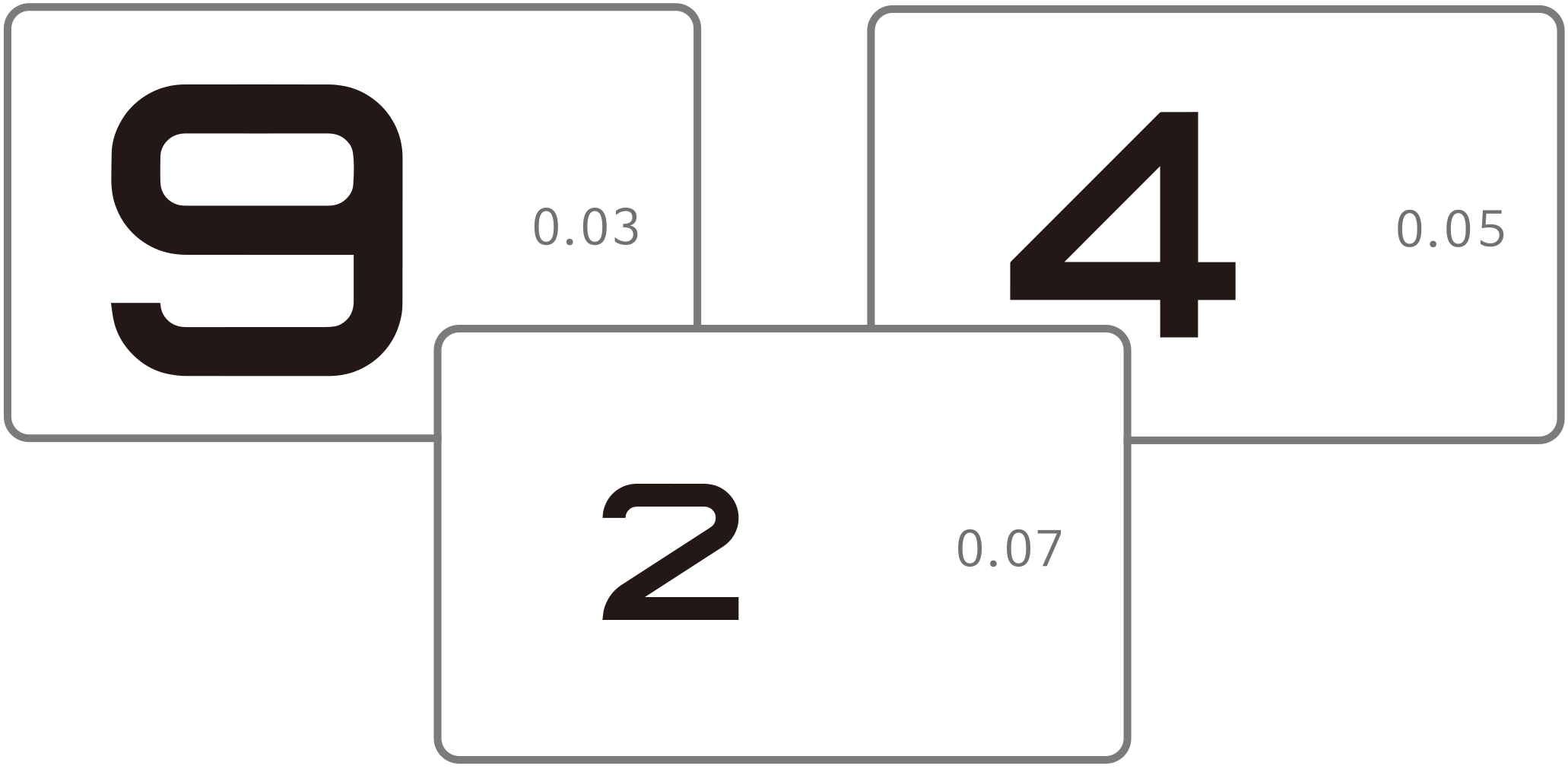

Low-Vision Charts
Provides ultra-large visual acuity charts including 0.03, 0.05 and 0.07 decimal acuity for low-vision patients.

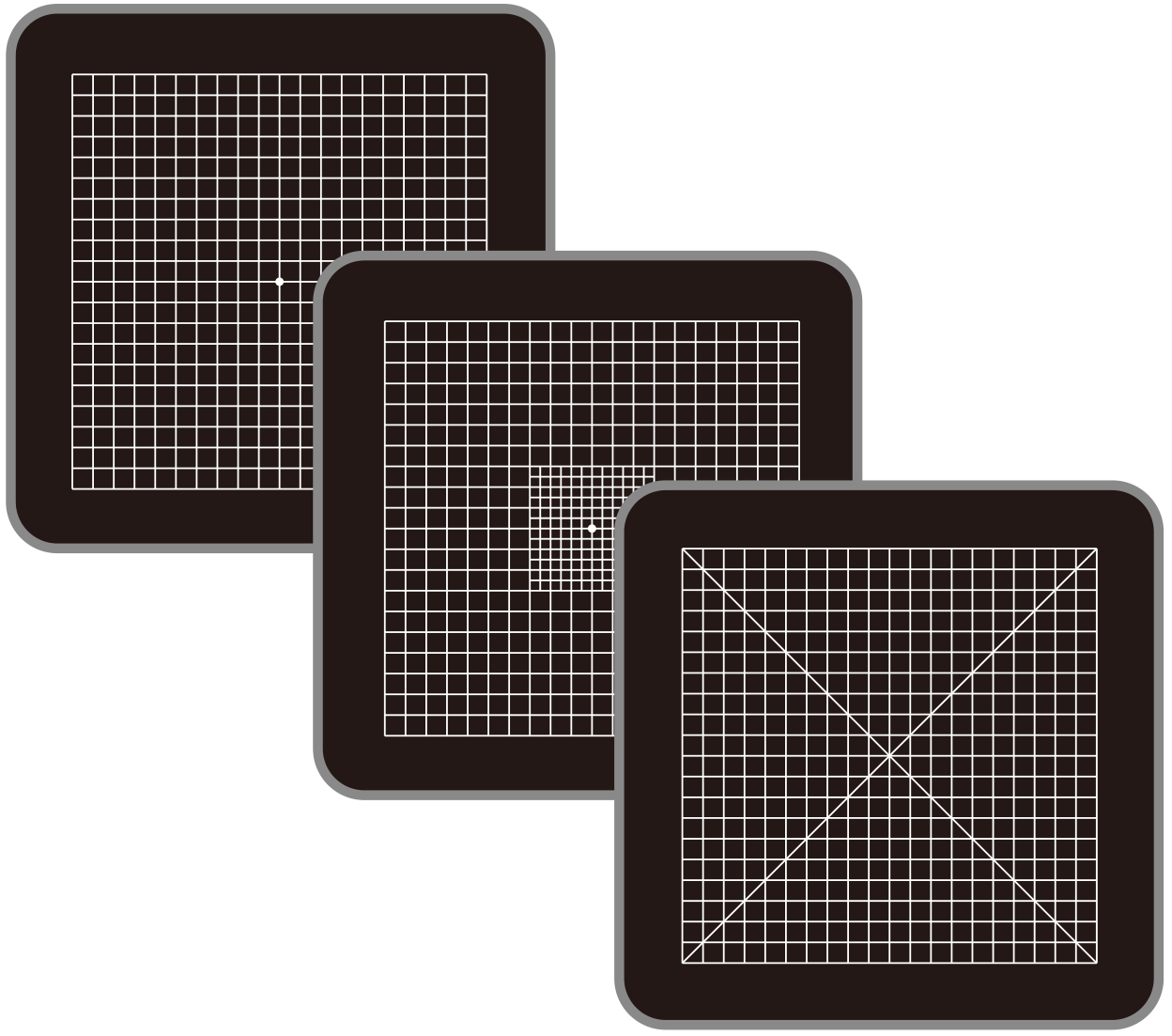

AMSLER Grid
Supports convenient retinal disease screening with multiple Amsler grid patterns.

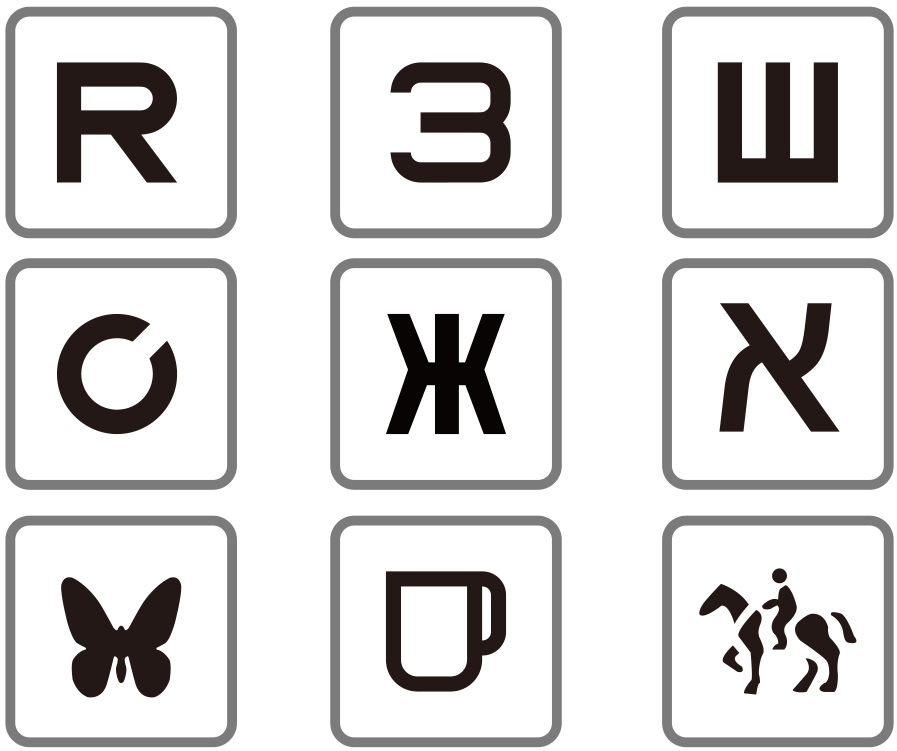

Variable Optotypes
Supports alphabet, number, Tumbling E, Landolt C, Cyrillic, Hebrew, pediatric and other optotypes.

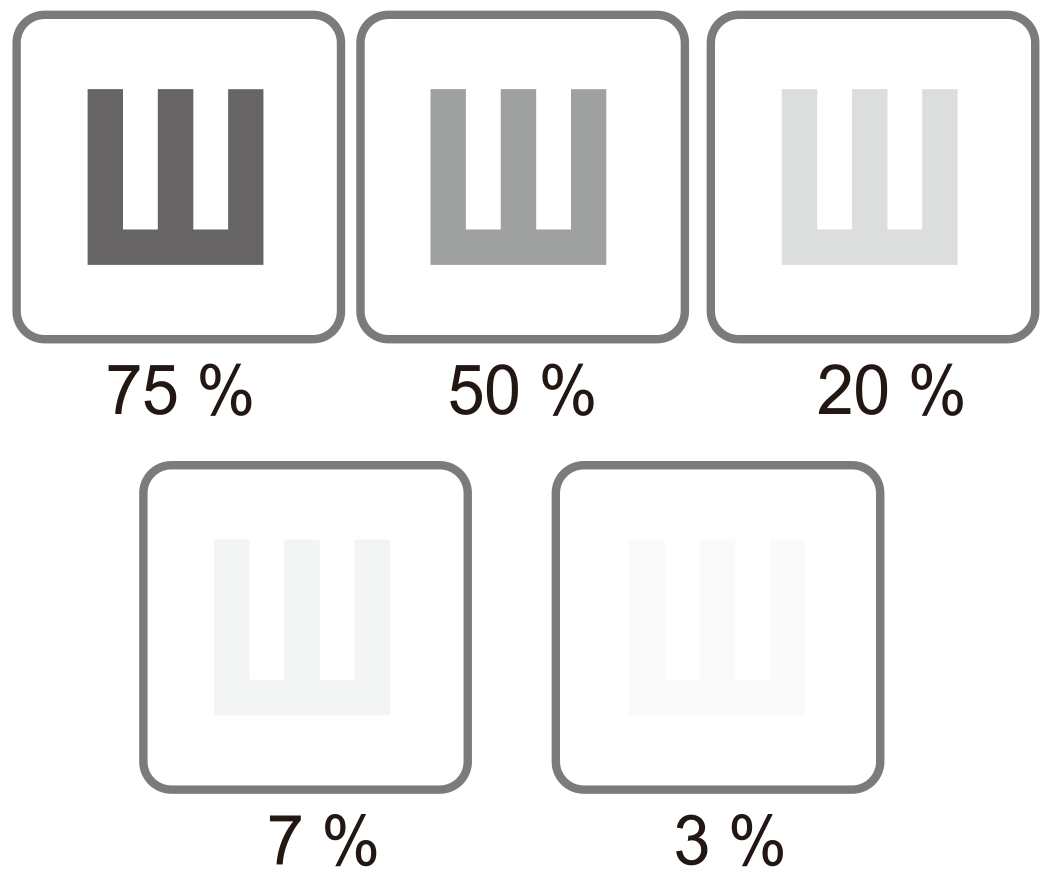

Contrast Control
Adjustable contrast levels support contrast sensitivity testing and post-surgical refraction assessment.

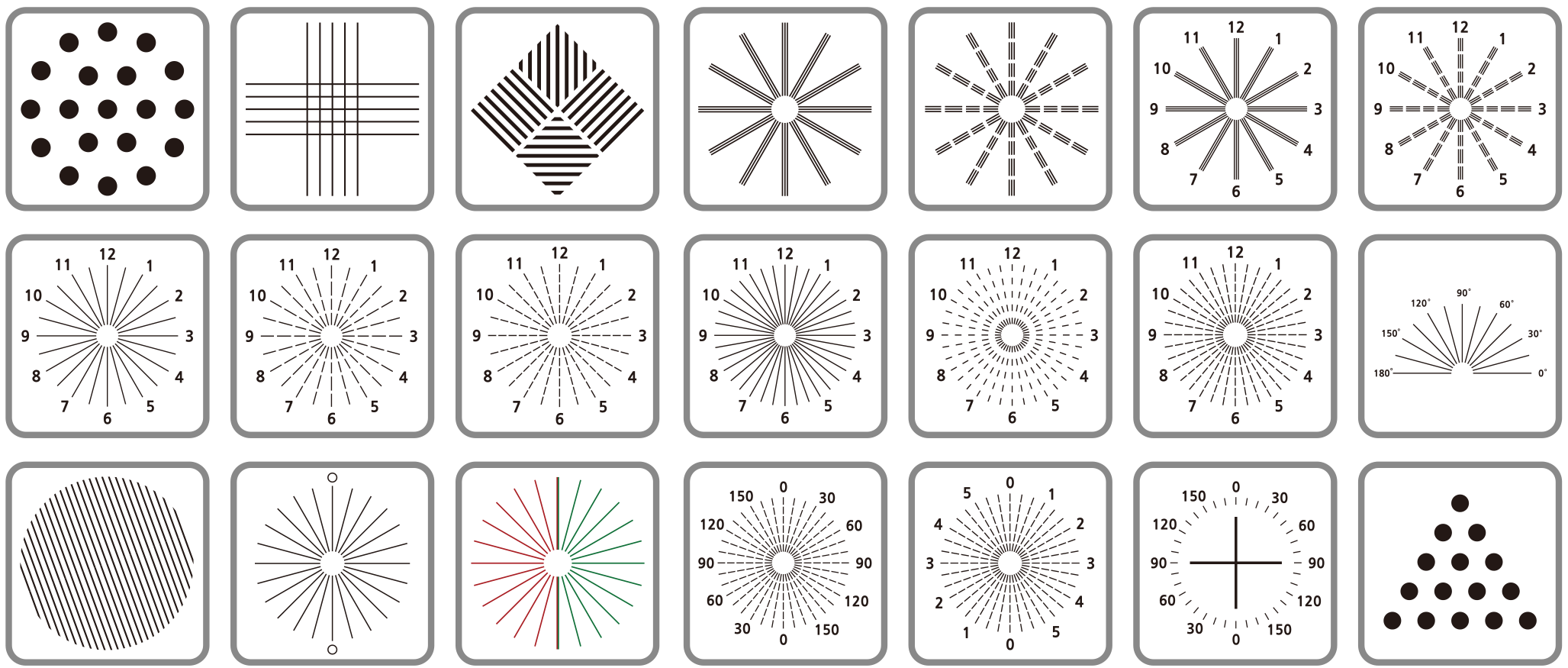

Astigmatism Charts
Provides 21 dedicated astigmatism charts for accurate axis and cylinder evaluation.

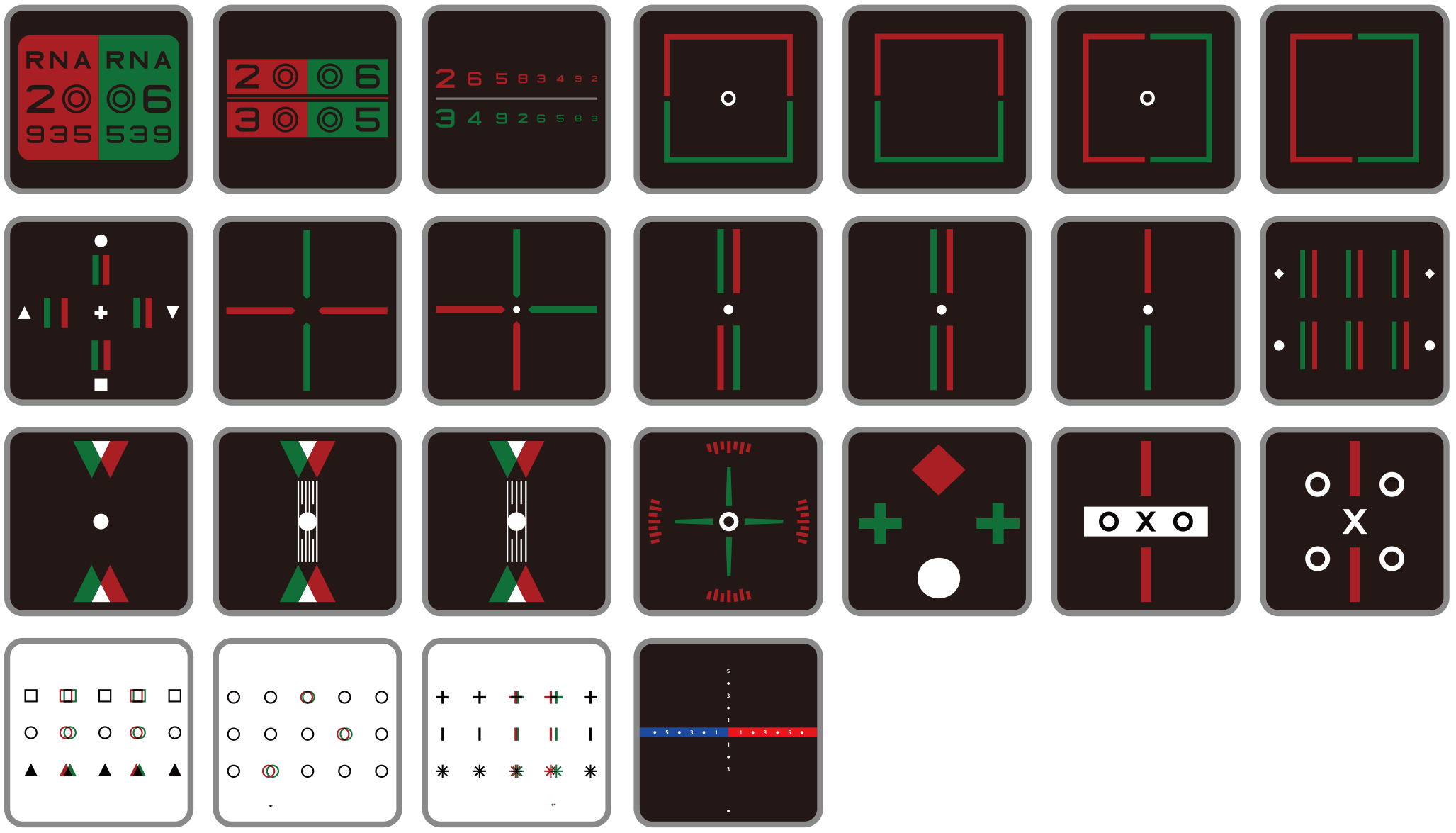

Special Test Charts
More than 25 specialized charts for: • Binocular vision • Stereopsis • Fusion • Suppression • Aniseikonia • Heterophoria

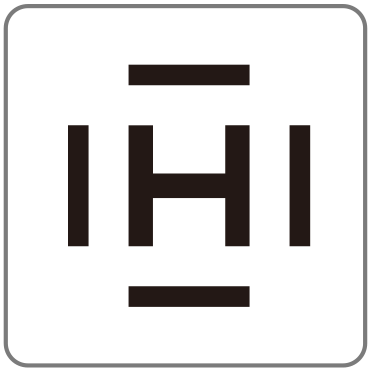

Crowding Mask
Improves concentration and optotype recognition for children and patients with ophthalmic diseases.

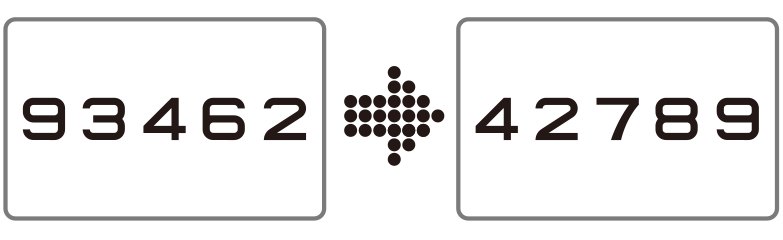

Randomizing Charts
Randomly rearranges optotypes at the same visual acuity level to prevent memorization and improve examination accuracy.
Smart Platform & Connectivity
TSLC-2000 combines Android embedded software, high-resolution LCD display, remote control, and external device communication.
Android Embedded
Stable system platform with convenient resource management.
64-bit Quad-Core
High-performance processor for fast and smooth operation.
Optimized 16:10 WUXGA Display
1200-pixel vertical resolution provides more chart area than conventional 1080-pixel displays, allowing efficient presentation of visual acuity charts and examination images.
Compatibility
Supports infrared and RS-232 communication, allowing integration with digital refractors and refraction systems from leading global manufacturers.
Clinical Workflow Demonstration
Watch the TSLC-2000 in real clinical environments, including portrait screen mode, chart operation, optotype control, and special examination functions.

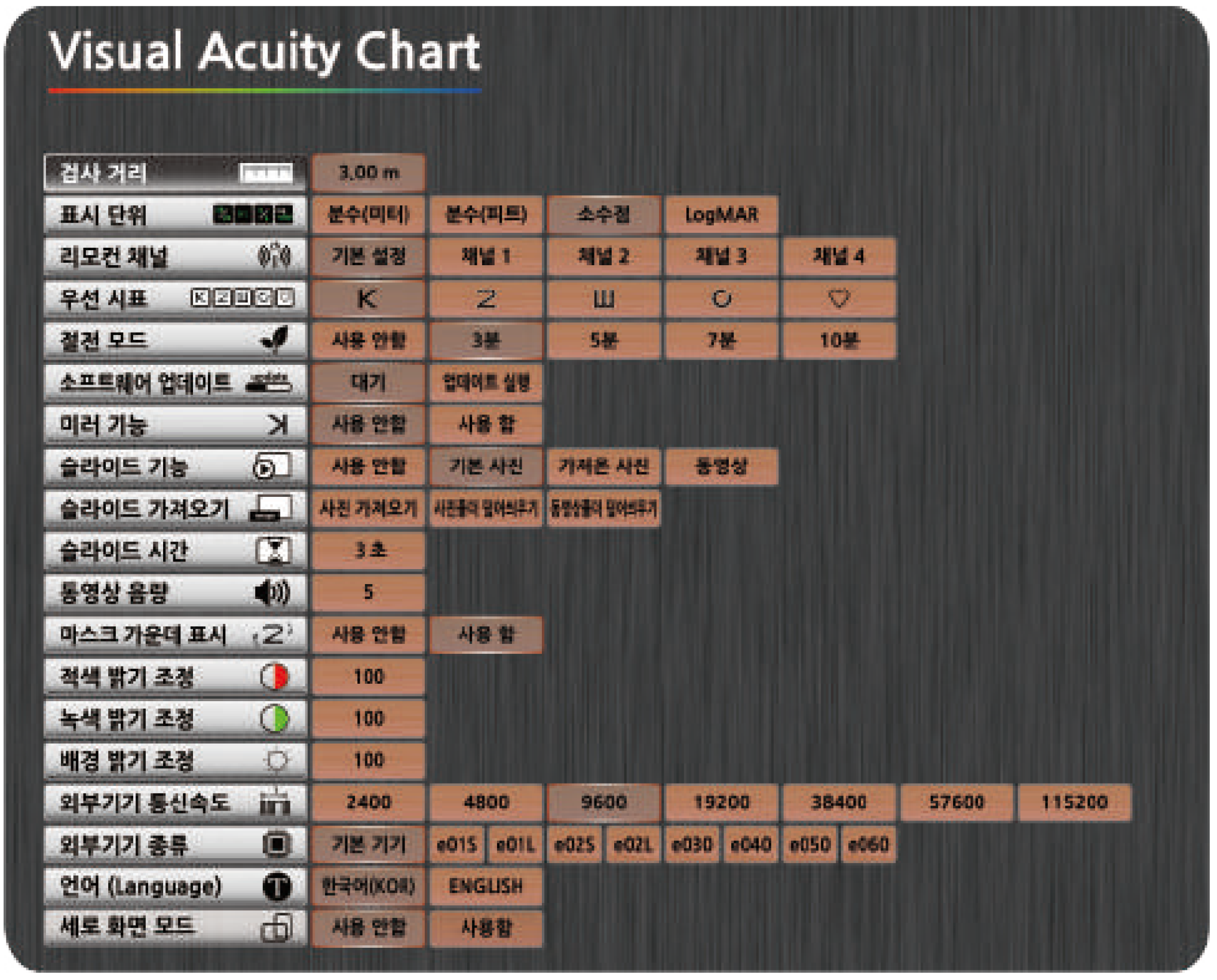

Convenient Menu Screen
The intuitive menu interface provides high visibility, easy operation, and multiple language support for daily clinical use.
Operators can access chart types, display units, test distance settings, and system functions through a clear menu structure.

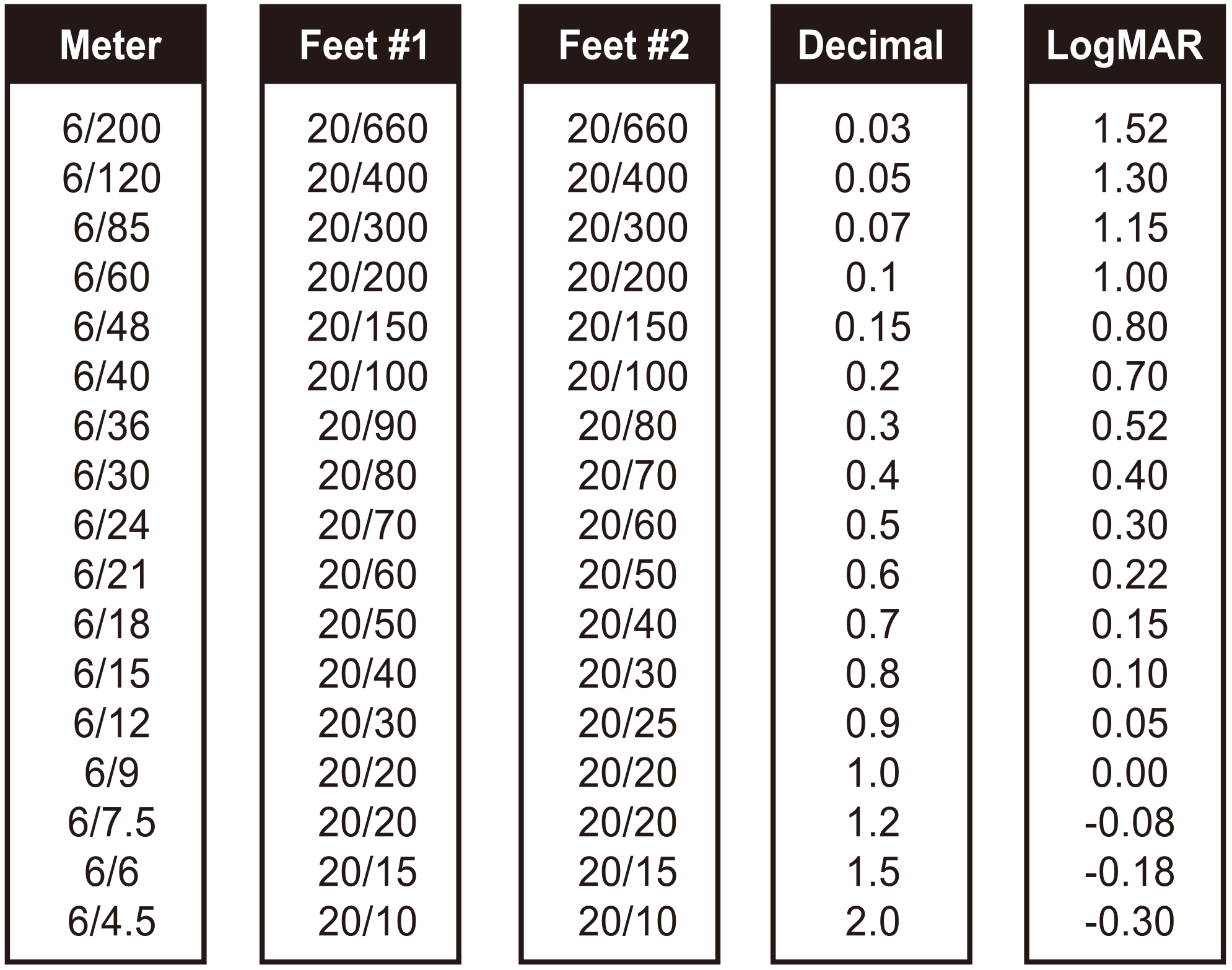

Optimized Display Units
TSLC-2000 supports multiple visual acuity display units including Meter, Feet, Decimal, and LogMAR.
This allows clinics to configure the system according to local examination standards and user preference.

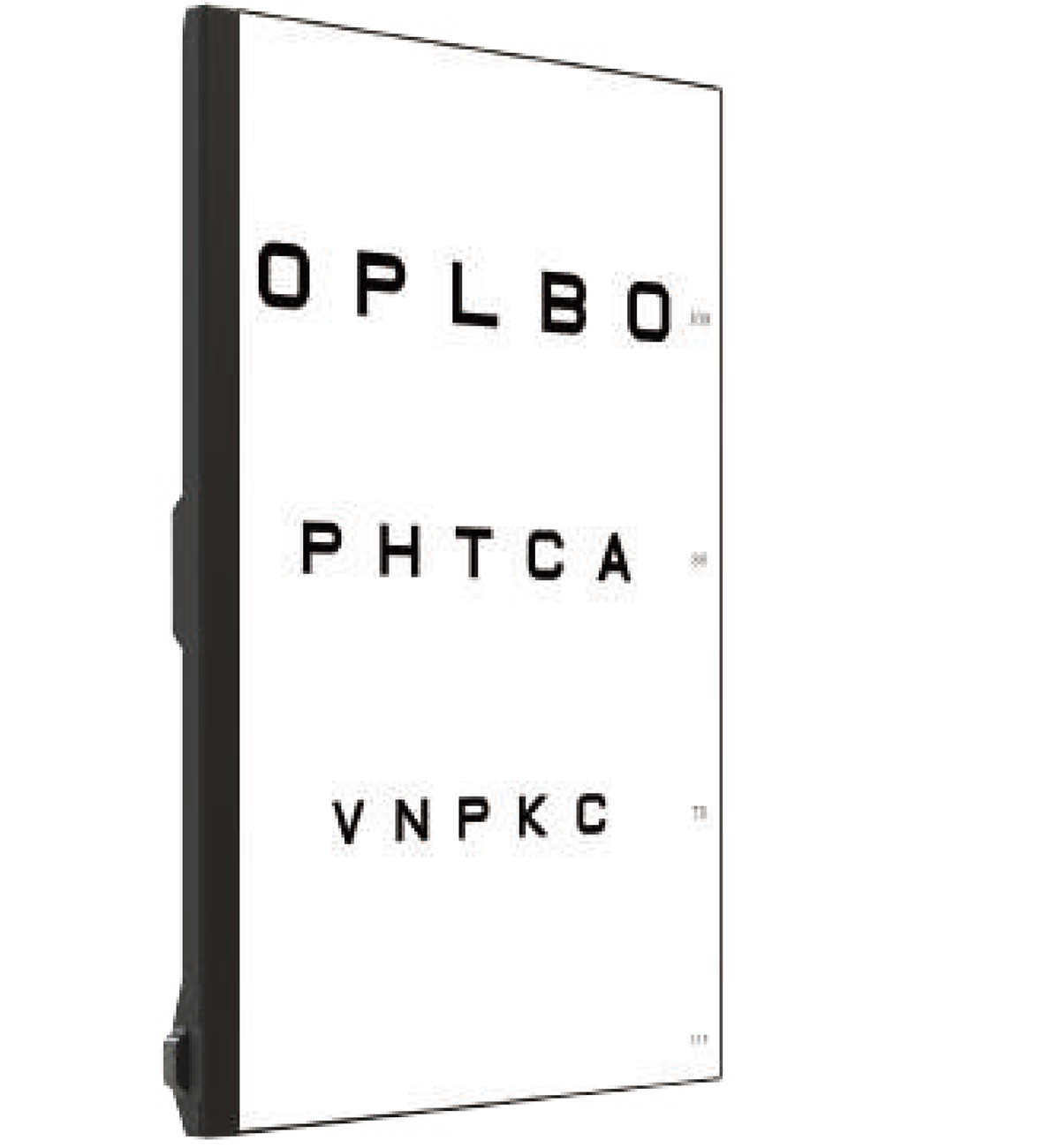

Portrait Screen Mode
TSLC-2000 supports portrait screen installation for narrow examination spaces and flexible clinical environments.
The portrait orientation enables efficient utilization of limited interior space without additional construction changes, while maintaining excellent visibility for visual acuity testing.
This configuration is especially useful for compact refraction rooms and modern ophthalmic clinics.

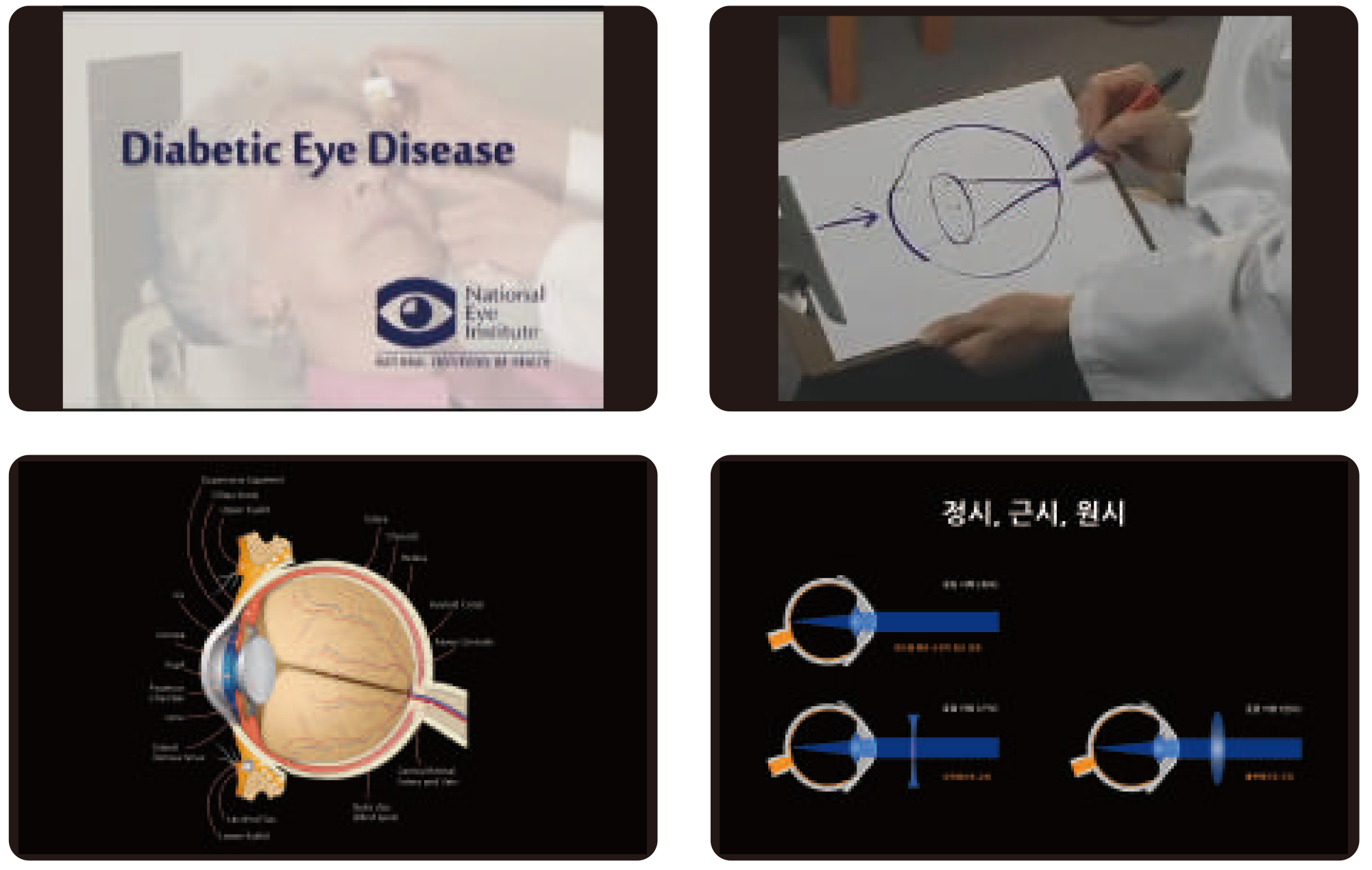

Excellent Slide Function
Images and videos can be played from internal memory or external USB drive, allowing the system to be used for patient education and promotional content.
Specifications
Technical specifications of TSLC-2000 Visual Acuity Chart System.
| Display | |
|---|---|
| Screen | 24 inch WUXGA LCD |
| Visible Area | 518.4(W) × 324.0(H) mm |
| Screen Ratio | 16 : 10 |
| Resolution | 1920 × 1200 pixels |
| Testing | |
| Test Distance | 1.5 ~ 8.0 m / 4.75 ~ 26.00 feet |
| Display Units | Meter, Feet, Decimal, LogMAR |
| Optotypes | Alphabet, Number, Tumbling E, Landolt C, Pediatric and more |
| System | |
| Main Processor | Amlogic S905, Quad-Core Cortex-A53 1.5GHz |
| GPU | 3 × ARM Mali-450 MP 700MHz |
| Internal Memory | MicroSD 32GB |
| Connection & Control | |
| Control | Infrared Remote Control or RS-232 |
| Multi-Channel | Max. 4 channels |
| External Interface | 4 × USB, 1 × RS-232, 1 × Ethernet |
| General | |
| Power | AC 100–240V, 50/60Hz |
| Adapter Power | DC 12V 5A, 50VA |
| Dimension | 534(W) × 361(H) × 41 mm |
| Net Weight | Approx. 4.0 kg |
Downloads
Product brochure and technical documents for TSLC-2000.
Product Brochure
TSLC-2000 product overview, features and specifications.
Catálogo del producto
Descripción general, características y especificaciones del TSLC-2000.
Brochure produit
Présentation, caractéristiques et spécifications du TSLC-2000.
Brochura do produto
Visão geral, características e especificações do TSLC-2000.
Declaration of Conformity
Visual Acuity Chart System TSLC-2000
Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017 concerning Medical Devices.
IFU : Operating instructions
Visual Acuity Chart System TSLC-2000.
Revision 9
IFU : Instrucciones de uso
Sistema de cartilla de agudeza visual TSLC-2000.
Revision 9
IFU : Instructions d’utilisation
Système d’affichage d’acuité visuelle.
Revision 9
IFU : Instrukcja obsługi
System tablic do badania ostrości wzroku TSLC-2000.
Revision 9
Interested in TSLC-2000?
Contact SCIENCETERA for product details, distributor inquiries, technical documentation, or quotation requests.
